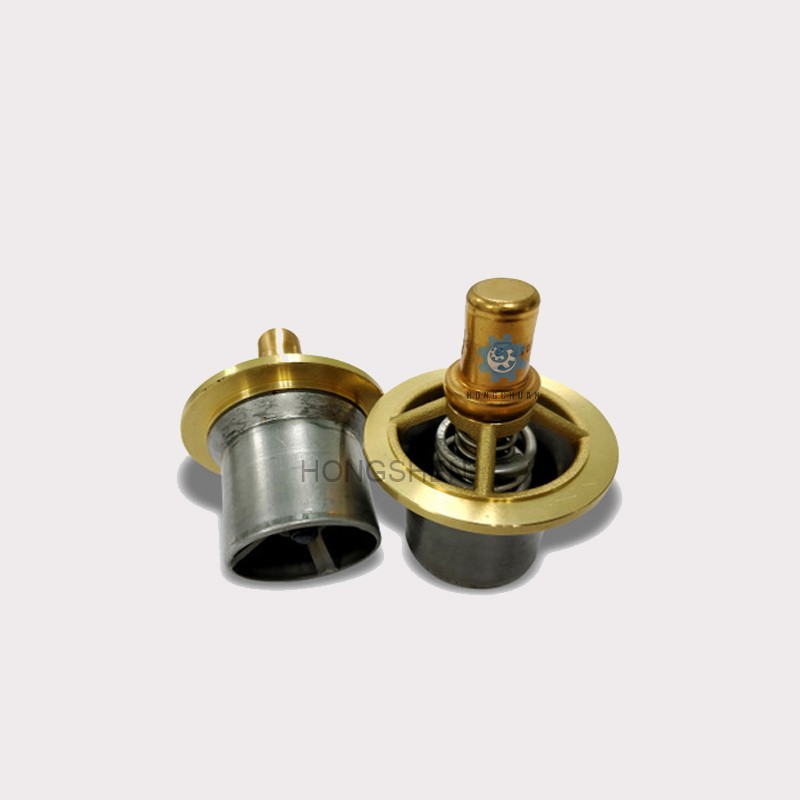

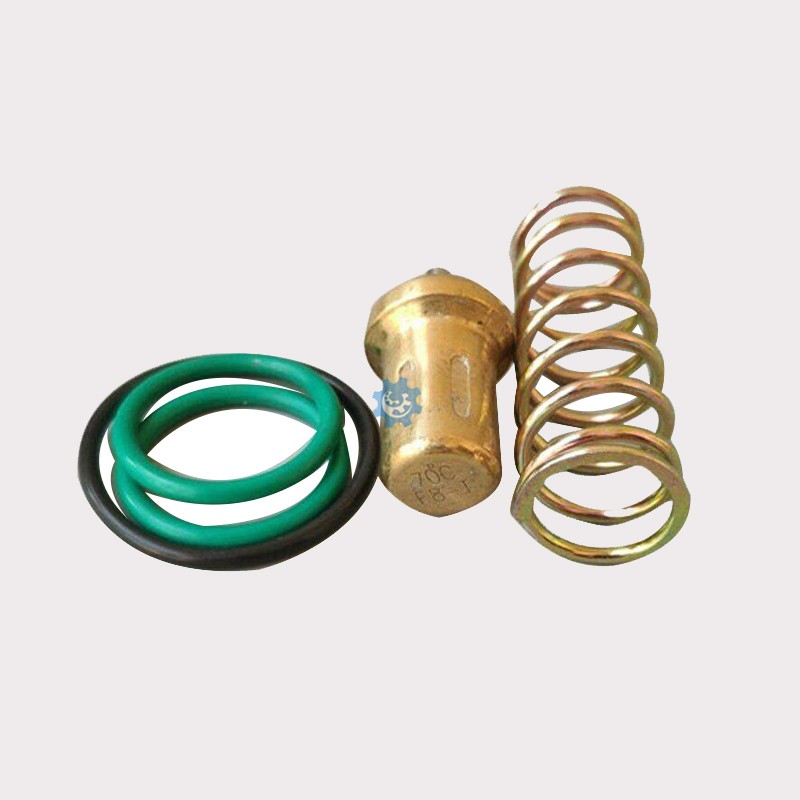

thermostat valve core thermal kit 250025-621

Air Compressor Parts Thermostat Valve Core Thermal Kit 250025-621 99250508 Apply To Sullair

Pressure:8 bar

Warranty:6 months

Weight:0.2KG

Material:Copper

Suitable for :250031-438 250017-280

The principle of the thermostat valve is thermal expansion and contraction.With the oil temperature to determines the valve openning. When the temperature is high, the valve of the oil passage leading to the cooler is opened,to achieve the purpose of cooling. When the oil temperature reaches 70 degrees, the valves are all opened, and all the lubricating oil passes through the cooler and then returns to the oil and gas cylinder and the element (airend ). Airend—oil cylinder—cooler— airend. When the temperature is low, the thermostat valve does not open, and the lubricating oil is directly circulated by the airend-the oil and gas cylinder-airend.
